CV 3030
Printer speed   Print Speed: 130PPM
Printer Area   Print Area: A4
Printer resolution   D600DPI
Printer Input   10 Sheet ADF
Printer connectivity   USB Drive/Flash
Printer Colors   8 Standard Color

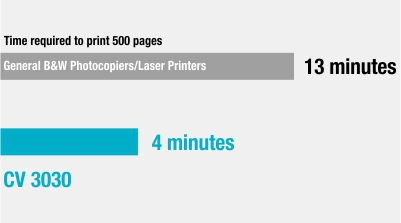

High-speed printing of 130 ppm

High-speed printing of 130 ppm

The CV series provides high-speed printing of up to 130 ppm which means you can print 500 pages in just less than 4 minutes.

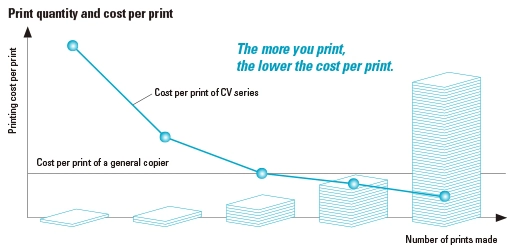

Savings in print costs

Savings in print costs

The CV series makes prints from a master. As a result, the more pages generated from each master the lower the cost per print, making it highly economical for medium to high volume printing.

Direct printing with Pendrive

Direct printing with Pendrive

You can print directly from the data saved in a USB flash drive. This is convenient when the machine is not connected to a PC or network. Also, printing directly from Computer ensures better printing quality.

Auto Document Feeder (ADF)

Auto Document Feeder (ADF)

Automatic Document Feed allows you to load up to 10 sheets for scanning & printing, hence allowing you to do other jobs while machine does the printing.

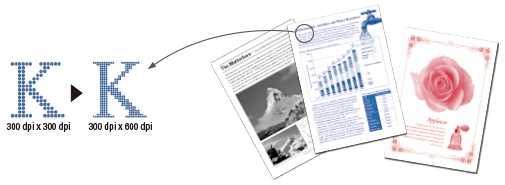

Excellent Print Quality

Excellent Print Quality

High-quality printing is achieved by using a higher resolution thermal head which is normally employed in higher models. The new light source delivers improved color reproductibility & also the tonality and resolution have been improved, thanks to the enhanced error-diffusion processing.

High Paper Capacity

High Paper Capacity

The paper trays have a capacity of approx. 1000 sheets for feeding and approx. 800 sheets for receiving, which ensures uninterrupted printing over a longer period

Easy access to the print drum

Easy access to the print drum

Changing ink color is simple yet effective to emphasize the original. The design allows quick and easy removal and replacement of the print drum. This helps minimize interruption at busy times.

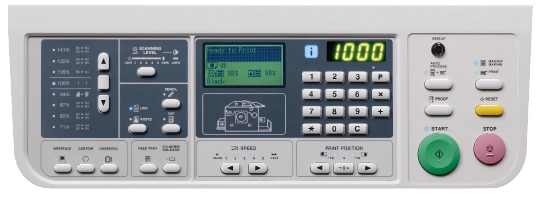

Easy-to-operate LCD panel

Easy-to-operate LCD panel

The 128 x 64 dot LCD panel is clearer to view and easier to operate than ever before.

Compact & Ergonomic Design

Intuitive operation
The new operation panel is designed for intuitive operation, making it user-friendly. The left-to-right keyboard layout provides fluent operation; for initial setting, master-making and printing.

Compact
New design, smooth lines and a compact body result in reduced size and bulk, to fit in even a limited space.

Specifications

Specifications CV 3030
Master-making/Printing Methods High-speed digital master-making/fully automatic printing
Original Type Sheet
Original Size (min./max.) 90 mm x 140 mm – 310 mm x 435 mm
Original Paper Weight 50 gsm – 107 gsm
Original Paper Capacity Approx. 10 sheets (64 gsm – 80 gsm / Maximum height 1 mm)
Scanning Area (max.) 297 mm x 435 mm
Printing Paper Size (min./max.) Minimum size: 100 mm x 148 mm
Maximum size: 257 mm x 364 mm
Paper Supply Capacity Approx. 1000 sheets (64 gsm to 80 gsm / Maximum height: 110 mm)
Paper Receiving Capacity Approx. 800 sheets (64 gsm to 80 gsm / Maximum height: 90 mm)
Printing Paper Weight 50 gsm – 157 gsm
Image Processing Mode Line, Photo, Duo, Pencil
Scanning Resolution 300 dpi x 600 dpi
Printing Image Resolution 300 dpi x 600 dpi (600 dpi x 600 dpi: Perforation density on the master)
Master-making Time Approx. 35 seconds or less (for B4 originals/short edge feed/100% reproduction ratio)
Printing Area (max.) 210 mm x 290 mm
Print Reproduction Ratio Standard reproduction ratio (enlargement): 141%, 122%, 116%
Print Speed 60 – 130 sheets per minute (five steps variable)
Print Position Adjustment Vertical: ±10 mm, Horizontal: ±10 mm *1
Ink Supply Fully automatic (800 ml per cartridge)
Master Supply/Disposal Fully automatic (235 sheets per roll)
Master Disposal Capacity Approx. 30 sheets
User Interface LCD panel
Computer Connection USB PC Interface
Optional Accessories Color Drum (Cylinder), Job Separator
Operating Noise Max. 68 dB(A) (when printing 100 sheets per minute in the operator position)
Power Source*2 AC 100-120 V/220-240 V, 50-60 Hz <2.0 A/1.0 A>
Power Consumption Max. 200 W
At Ready: 15 W or less
At Sleep: 10 W or less
Functions Image Processing Mode (Line/Photo/Duo), Pencil, Enlargement/Reduction, Scanning Level, 2up, Auto Process, Proof, Print Position, Speed, Program (A/B), Confidential, Custom Setting Mode, Direct Printing, USB Flash-via-Printing, Consumables Information, Energy Saving Mode (Auto Sleep/Auto Power-OFF), RISO i Quality System
Dimensions When in use: 1280 mm (W) x 655 mm (D) x 515 mm (H)
When in storage: 665 mm (W) x 655 mm (D) x 505 mm (H)
Required Space 1280 mm (W) x 1255 mm (D) x 845 mm (H)
Weight*3 Approx. 65 kg
Safety Standards IEC-60950-1 compliant, indoor, pollution degree 2*4, at altitudes of 2000 m or lower
